[done]particle acceleration

[titi]

There is a new pull request https://github.com/MegaGlest/megaglest-source/pull/24 about particles which can accelerate.
Please comment/discuss

[Omega]

The pull request says

For example with negative speed + spherical shape you can make very nice effects.

I'd like to see an example of exactly what this looks like, because I'm having difficulty imagining it.

As for other use cases, attacks that shoot rockets might look interesting with acceleration. I think for really long range attacks, though (the thing I have in mind is the nuclear missile that I previously implemented in Military, which was able to target anywhere on the map), we'd need a way to specify the maximum speed, so that the projectile won't accelerate too fast. Rather, it'd start slow and eventually reach a max speed (very much like a real missile).

[titi_son]

As for other use cases, attacks that shoot rockets might look interesting with acceleration. I think for really long range attacks, though (the thing I have in mind is the nuclear missile that I previously implemented in Military, which was able to target anywhere on the map), we'd need a way to specify the maximum speed, so that the projectile won't accelerate too fast. Rather, it'd start slow and eventually reach a max speed (very much like a real missile).

Sadly this is not for projectiles but only particles :( (unit particles and splash particles )
I may try speed-up for projectiles later.

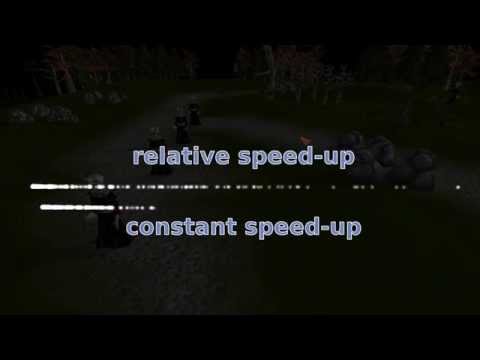

I made a youtube video and i hope you can see what this does:

https://www.youtube.com/watch?v=jGjIlm57OTY

[spoiler=Here are the Xmls of the Examples]
The "lines"

Code Select Expand


<unit-particle-system>
    <texture value="true" path="images/particle.bmp" luminance="true"/>
<mode value="normal"/>
<primitive value="quad"/>
<offset x="-1" y="1" z="0.5"/>
<direction x="0.03" y="0" z="0"/>
<color red="1" green="1" blue="1" alpha="1" />
<color-no-energy red="0" green="0" blue="1" alpha="1" />
    <radius value="0" />
    <size value="0.1" />
    <size-no-energy value="0.4" />
    <speed value="2.0" />
<speedUp constant="0" relative="0.01"/> / <speedUp constant="0.01" relative="0"/>
<gravity value="0"/>
    <emission-rate value="0.5" />
    <energy-max value="170" />
    <energy-var value="0" />
<relative value="true" />
    <fixed value="true" />
    <teamcolorNoEnergy value="false" />
    <teamcolorEnergy value="false" />
</unit-particle-system>

The "ball":

Code Select Expand


<unit-particle-system>
    <texture value="true" path="images/particle.bmp" luminance="true"/>
<mode value="normal"/>
<shape value="spherical">
<angle value="90"/>
</shape>
<primitive value="quad"/>
<offset x="0" y="0" z="1"/>
<direction x="1.0" y="0" z="0"/>
<color red="1" green="1" blue="1" alpha="1" /> / <color red="1" green="1" blue="1" alpha="0" />
<color-no-energy red="0" green="0" blue="1" alpha="1" />
    <radius value="0.1" />
    <size value="0.1" />
    <size-no-energy value="0.4" />
    <speed value="2.0" />
<speedUp constant="-0.03" relative="-0.007"/>
<gravity value="0"/>
    <emission-rate value="0.5" />
    <energy-max value="70" />
    <energy-var value="0" />
<relative value="true" />
    <fixed value="true" />
    <teamcolorNoEnergy value="false" />
    <teamcolorEnergy value="false" />
<alternations value="1" /> / --
</unit-particle-system>

The "Ring"

Code Select Expand


<unit-particle-system>
    <texture value="true" path="images/particle.bmp" luminance="true"/>
<mode value="normal"/>
  <shape value="conical">
       <angle value="90" />
    </shape>
<primitive value="quad"/>
<offset x="0" y="-0.9" z="0"/>
<direction x="0.0" y="1" z="0"/>
<color red="1" green="1" blue="1" alpha="1" />
<color-no-energy red="0" green="0" blue="1" alpha="1" />
    <radius value="0" />
    <size value="0.1" />
    <size-no-energy value="0.4" />
    <speed value="2.0" />
<speedUp constant="0" relative="-0.05"/>
<gravity value="0"/>
    <emission-rate value="0.5" />
    <energy-max value="170" />
    <energy-var value="0" />
<relative value="true" />
    <fixed value="true" />
    <teamcolorNoEnergy value="false" />
    <teamcolorEnergy value="false" />
</unit-particle-system>


The "Crown"

Code Select Expand


<unit-particle-system>
    <texture value="true" path="images/particle.bmp" luminance="true"/>
<mode value="normal"/>
  <shape value="conical">
       <angle value="90" />
    </shape>
<primitive value="quad"/>
<offset x="0" y="0.9" z="0"/>
<direction x="0.0" y="0.1" z="0"/>
<color red="1" green="1" blue="1" alpha="1" />
<color-no-energy red="0" green="0" blue="1" alpha="1" />
    <radius value="0" />
    <size value="0.2" />
    <size-no-energy value="1" />
    <speed value="2.0" />
<speedUp constant="0" relative="-0.05"/>
<gravity value="-0.05"/>
    <emission-rate value="0.5" />
    <energy-max value="230" />
    <energy-var value="0" />
<relative value="true" />
    <fixed value="true" />
    <teamcolorNoEnergy value="false" />
    <teamcolorEnergy value="false" />
</unit-particle-system>

[/spoiler]

[Omega]

Ah, I see what you mean now. I was assuming attack projectiles, not unit particles (any chance we could see both?). Looks good.

[titi_son]

Ah, I see what you mean now. I was assuming attack projectiles, not unit particles (any chance we could see both?). Looks good.

I suppose we can. I just didn't look at it until now: :)

[Ishmaru]

How do yo make a spherical or conical shape?

Would you mind posting those particle xmls for reference?

[jammyjamjamman]

It's all in the xml examples, these are the lines in question:

Code Select Expand

<shape value="spherical">

Code Select Expand

<shape value="conical">

The ring and the crown both use the conical shape
